Hinge Joint Galvanized Field Fence With Wire Mesh 1.8m ASTM A121

Hinge joint 1.8m Height Hot Dip Galvanized 245g/m2 grassland cattle fence

cattle fence Introduction:

Field fence also called grassland fence, sheep fence,deer fence or cattle fence,field fence is kind of mesh used in cattle,goat and pig fencing. This product is welcomed by USA,Australia and south africa market.

Filed fence is made by automated machine, offer high strength and tensile strength, provide safety fencing against fierce striking of cattle, horse or goats.

Grassland fence makes an ideal fencing material for grassland husbandry.

Common Galvanized Filed Fence Specification:
Hot-dipped galvanized wire, which is made of Q235 iron rod.
Wire dia: 2mm, BWG 14
Selvage wire dia: 2.5mm
Horizontal wire Dia: 2.0mm
Vertical wire dia: 2.0mm
Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m, 2.0m, 2.5m;
Length: 115 inch (50m) or 330 inch (100m);
Distance: (vertical) 15-14-13-11-10-8-6cm; (horizontal) 15-18-20-40-50-60-65cm

At Qijie, we offer the agriculture industry’s leading fencing products. It’s not only because of our superior China-made steel. It’s also because of the construction of the fence itself. Qijie field fence is considered the most reliable confinement option for cattle, hogs and other large animals. Our strong, yet flexible fencing holds up to the pressure of corralling large herds. Another important feature is the special crimp that expands and contracts under extreme weather changes. The result is a reliable enclosure in even the most severe conditions.

Field fencing is not a one-size-fits-all product. That’s why Qijie offers over 45 different types of field fence. Here are some of the basic factors that differentiate our field fence options.

cattle fence​ Standard Specifications:

• Material: High quality high carbon steel wire,low carbon steel wire.

• Surface treatment: Electro galvanized,Hot dipped galvanized, High zinc coated.

• Wire diameter:1.8mm-3.2mm

• Height range: from 0.6m to 2.45m. Common is 1.2m, 1.5m and 1.8m.

• Knot type: Hinge joint type, fixed knot type.

• Main market:New Zealand,Malaysia, Australia, Peru, North America and Africa

• Tensile strength:450N/mm2-550N/mm2,700N/mm2-800N/mm2,1200N/mm2-1400N/mm2

• Zinc coated: 12-15g/m2, 40-60g/m2,>220g/m2

cattle fence​ Characteristic:

1. The cattle farm fence are braided with high-strength galvanized steel wire, with high strength and high tensile force, which can withstand the violent impact of cattle, horses, sheep and other livestock. Safe and reliable.
2. The steel wire of the cattle farm fence the surface of the wave ring is galvanized, and other parts are made of anti-rust and anti-corrosion.
3. Cattle farm fence weft adopts rolling process to enhance the elasticity and buffer function,
It can adapt to the deformation of cold shrinkage and thermal expansion. Keep the net fence tight.
4. Cattle farm fence has simple structure, convenient maintenance, short construction period, small size and light weight

cattle fence​ Application:

grassland, forestry and highway

Grassland fence is a kind of mesh used in cattle, goat, deer, and pig.It is used for grassland, protection of ecological projects,
Papadopoulos grassland, forestry, highway and environment.sports venues fence, the road network of green belt protection.

cattle fence​ Packing:

each roll was wrapped by plastic film (in order to prevent the fence roll be damp), and then on

wooden or metal pallet or in bulk
T/Y-post:
in bundle

farm fence with wire mesh ASTM A121

farm fence with wire mesh 1.8m

Hinge joint galvanized field fence

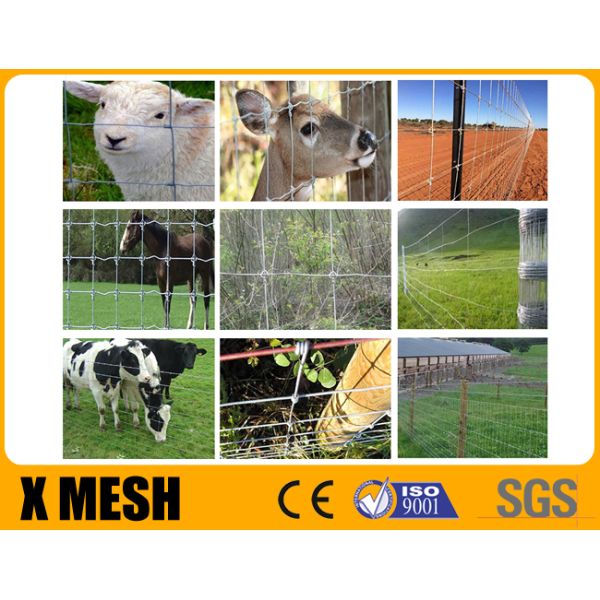

Hinge Joint Galvanized Field Fence With Wire Mesh 1.8m ASTM A121 Images
